The Database interface extends the Map interface. Some of the extra methods in Database add extra functionality such as searching for closest matching keys. The other extra methods have similar functions as other methods that already exist in the Map interface, but they are designed to be possible to implement more efficiently^[1] than their Map counterparts. This means that any Database can be used as a Map, but if the client is able to choose, it should preferably use the methods defined in the Database interface over those from the Map interface.

// Create a new SimpleDatabase that uses a HeapBackend.
// The database will store String keys and values.
//  - f is a File where the database data will be stored.

// A LogAdapter that logs to stdout and stderr.
LogAdapterHolder lah =
  new LogAdapterHolder(
    new StdOutLogAdapter());

Database<String, String> db =
  new SimpleDatabase<String, String, Long>(
    // Use a HeapBackendBuilder object to build the HeapBackend.
    // Objects in HeliDB with many configurable parameters often have builder
    // objects to make it easier to construct them.
    new HeapBackendBuilder<String, String>().
      setKeySerializer(StringSerializer.INSTANCE).
      setValueSerializer(StringSerializer.INSTANCE).
      // Adapt the File to a ReadWritableFile.
      create(new ReadWritableFileAdapter(f)),
    lah);

// Insert a couple of values
db.insert("key 1", "value 1");
db.insert("key 2", "value 2");

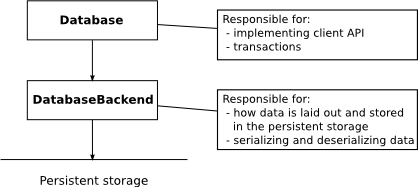

The DatabaseBackend is responsible for storing and retrieving data from the persistent storage, which commonly is one or several database files. To write data and interpret written data, it uses one Serializer instance for keys and one for values. What a Serializer is is explained below.

The database uses the position of a record to locate it in the database backend. Exactly what the position is depends on the backend implementation. The client only has to bother with how the positions are represented when creating the database object.

Serializer objects are used to serialize database keys and values to the bytes that are written to the persistent storage, and then to interpret those bytes into keys and values again. There are several Serializer implementations for primitive datatypes. See the API documentation for details.

It is also fairly easy to implement custom Serializer:s. See Appendix A, Custom Serializer implementation for an example.

A database transaction makes it possible for an execution thread to keep its updates of one or several databases ACID, Atomic, Consistent, Isolated and Durable, with regards to other execution threads in the program. For more information on transaction theory, see for instance this Wikipedia article on ACID:ity. A HeliDB transaction may be either read only or read/write.

Transactions are coordinated by the Transaction class. It contains static methods for starting a new transaction and for getting the current transaction, and methods for committing and rolling back a transaction.

Database:s that support transactions implement the TransactionalDatabase interface. It extends Database with a method for manually joining a transaction. If the Database has not already joined the current transaction, it automatically does so when any reading or updating operation is called on it. If a reading operation is called, the Database joins the current Transaction in read/only mode. If an updating operation is called, the Database joins the transaction in read/write mode.

A Database may join a read/write transaction in either read/write mode or read only mode. If it joins it in read/write mode, the entire database is locked for exclusive access by the thread having the transaction. If it joins it in read only mode, the database is locked with a read lock that may be shared with other read only transactions.

// Run a read/write transaction over two
// TransactionalDatabase<String, String>:s, db1 and db2.
boolean successful = false;
Transaction txn = Transaction.startTransaction(false);
try
{
  // db1 automatically joins txn in read/write mode since we're doing an
  // updating operation on it.
  db1.insertOrUpdate("lastUpdate", "" + System.currentTimeMillis());

  // We have to manually join db2 in the transaction in read/write mode.
  // Otherwise the get operation would have joined db2 in read only mode.
  db2.joinTransaction(false);

  String s = db2.get("years");
  db2.update("years", s + ", 2008");

  txn.commit();
  successful = true;
}
finally
{
  if (!successful)
  {
    // The transaction failed somehow. Roll back the changes.
    txn.rollback();
  }
}

Transactional Database implementations are thread safe, the SimpleDatabase is not. If the SimpleDatabase should be used concurrently from different threads, it has to be synchronized by the client.

Since Database and DatabaseBackend implementations often are configurable with a lot of properties, they can be created using builder objects such as LoggingTransactionalDatabaseBuilder and BPlusTreeIndexBackendBuilder. Using builders gives client programs more readable code. See the examples in the next chapters.

HeliDB database backends use EntityFS ReadWritableFile:s to persist data to. This means that data can be stored in any EntityFS file system (the RAM file system, for instance), or in plain, old Java File:s.

Database and backend classes log debug and trace output to an EntityFS LogAdapter.
